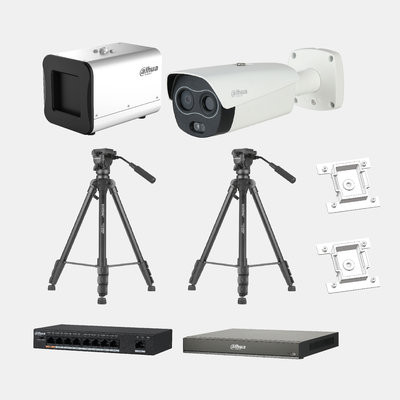

Product Overview
1x Thermal Body Temperature Monitoring Camera (DH-TPC-BF3221P-TB7F8-HT)
- 256 x 192 VOx uncooled thermal sensor technology
- Athermalized Lens (thermal camera), Focus-free
- Smart linkage with strobe light & audio
- Measurement Accuracy: ±0.3°C, with black body
- Temperature Measurement Range: 30°C to 45°C
- Micro SD memory, IP67, ePoE, PoE
1x Dahua BlackBody Box for Thermal Camera 0.3 accuracy (JQ-D70Z)
Blackbody is the calibration device that maintains a constant temperature as a reference point for the thermal camera, to make sure the thermal camera can present the most accurate temperature. The thermal camera coupled with the blackbody calibration device delivers a contactless solution for continuous, contactless, and non-invasive temperature monitoring.
1x 16 Channel 1U 16PoE AI Network Video Recorder (NVR5216-16P-I)
- 16 Channel IP video access
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
- Up to 16 Channel perimeter protection
- Up to 4 Channel video stream face recognition
- Up to 24 face pictures /sec processing
- Up to 20 face databases with 100,000 face images in total
- 1-8 PoE Ports support ePoE & EoC
2x Dahua Bracket for Bull/Black Box to Tripod (RAW021-00)
2x Dahua Tripod Stand - thermal camera (VCT-999)
1x Dahua 8 Port POE+ Switch 1 x UplinkPOE+ Hi POE 96W (PFS3009-8ET-96)
- Layer two commercial switch
- Supports PoE power management
- Supports wall-mount installation
- Supports anti-theft lock hole
- MAC auto learning and aging, MAC address capacity is 2K
- Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
- RJ45 port supports 10/100 Mbps self-adaptation
- Supports 250 meters long distance PoE transmission
- Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
