Dahua M70-4U-E Multi-service Video Management Platform

(No reviews yet) Write a Review

Log in for pricing

Shipping:
Calculated at Checkout
Dahua M70-4U-E Multi-service Video Management Platform

Product Overview

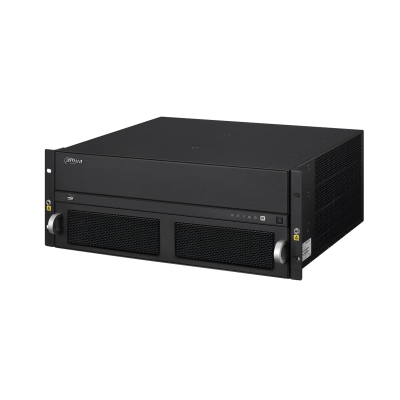

M70-4U-E

Multi-service Video Management Platform

> 19” standard 4U ATCA industry box
> Easy and flexible configuration with pluggable card module
design
> 80ch@1080P or 320ch@D1 signal encoding (full configured)
> 80ch@4K or 320ch@1080P or 720ch@720P or 1280ch@D1 signal decoding (full configured)
> Support 320ch@1080P H.265 signal decoding(full configured)
> Support 240@D1 nonstandard stream signal decoding(full configured)
> Support max 60 screens splicing
> Support analog/digital video signals input and matrix output
> Support SD/HD video signal matrix switch and output
> Support non-compressed digital signal encoding output
> 6 RJ-45 gigabit network ports for matrix control, preview and online central storage
> Support TCP/IP/RTP/RTSP/RTCP/TCP/UDP/DHCP/PPPoE and etc. network protocols
> Remote cast analog/digital video onto the video-wall
> Remote reboot/upgrade/default setting and etc. operations
> Support VGA signal automatic adjustment



For more Information:
https://www.dahuasecurity.com/asset/upload/uploads/soft/20191111/M60-7U_Datasheet_20191018.pdf



Model

Model

M70-4U-E

System Parameter

Main Processor

Quad-core embedded microprocessor

Operating System

Embedded LINUX

Bus

PCI-E

Slot

12(2 Main Control Board Slot, 10 Video and Audio Function Board)

Mainframe

Power module (redundant power optional), main control
board, control board, PCI-E bus rear panel, smart
temperature controlled fan

Video Input Card

Max. 10

Video Output Card

Max. 10

Video Input

VIC0201UH-M70 (HDMI)

Interface

2ch HDMI1.4 support HDCP

Access Capability

2ch@4K, downward compatibility

VEC0404HH-M70 (HDMI)

Interface

4ch HDMI

Encoding Format

H.264/MPEG4

Encoding Capability

4CH@1080P, support
resolution: 1080P/720P/UXGA/
SXGA+/SXGA/XGA/SVGA/VGA

VEC3204FB-M70 (CVBS)

Interface

32ch BNC (1.0Vp-p, 75Ω)

Signal Format

NTSC/PAL self-adaption

Encoding Format

H.264/MPEG4

Encoding Capability

32CH@D1

Data Ports

2 RS485 ports

VEC0404HD-M70 (DVI)

Interface

4ch DVI-I (HDMI & VGA with convertor)

Encoding Format

H.264/MPEG4

Encoding Capability

4CH@1080P, support resolution:
1080P/720P/UXGA/SXGA+/
SXGA/XGA/SVGA/VGA

VEC0804HC-M70 (HDCVI)

Interface

8ch BNC (1.0Vp-p, 75Ω)

Signal Format

HDCVI (audio/video/control)

Encoding Format

H.264/MPEG4

Encoding Capability

8CH@1080P

VEC0804HS-M70 (HD-SDI)

Interface

8ch BNC (1.0Vp-p, 75Ω)

Signal Format

HD-SDI, 1.485Gbps

Encoding Format

H.264/MPEG4

Encoding Capability

8CH@1080P

Data Ports

2 RS485 ports

Video Output

VDC0605H-M70(HDMI)

Decoding Capability

2CH@32MP(25fps)/8CH@12MP(15
fps)/8CH@4K/32CH@1080P/72CH
@720P/128CH@D1

Interface

6ch HDMI

Resolution

4000*3000@15fps,
3840*2160@30fps,
1920*1080@60fps,
1280*1024@60fps,
1280*720@60fps,
1024*768@60fps



Split

1/4/6/8/9/16/25/36, free split

Video-Wall

Decoding Card Video-Wall Splicing

Splicing

Support video-wall splicing (max
60 LCD display units)

Video-Wall

Support Splicing/Zoom/Merge/
Roam/Overlay

Input Source

HD/SD, Digital/Analog (support
mixed input)

Output Port

HDMI

Control Mode

WEB/Local GUI/Video Platform/
Network Keyboard/iPad

Network

Interface

6 RJ-45 ports (10/100/1000M), 2 in mainboard and 4 in control board

Serial Port

4 RS232 ports (4 RJ45), for console and control 1 RS485 port



USB

3 USB2.0, 1 USB3.0

Environmental

Power Supply

100~240V AC, 50/60Hz

Power Consumption

≤600W

Working Environment

-10°C ~+50°C / 10~90%RH / 86~106kpa

Dimension

4U, 482.6 × 437.0 ×177.0mm(19.0 × 17.2 × 7.0 inch), (W*D*H)

Weight

≤25Kg (full configured)
