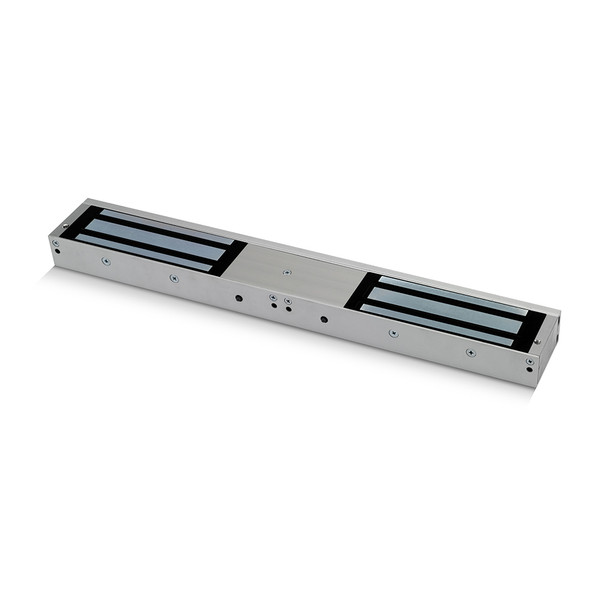

MONITORED DOUBLE STANDARD MAGNET
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Holding force up to 2 x 1200lbs (2 x 544Kg)
- Electro-less nickel plated armature
- Status LED: Red and Green
Product Overview
U10040
SKU: u10040
Description
- Voltage tolerance: ±10%.
- Current draw: 420mA at 12Vdc, 210mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
- Aluminium housing, nickel plated armature.
- Humidity: 0~95% non-condensing.
- Weight: 9.3kg (approx).
