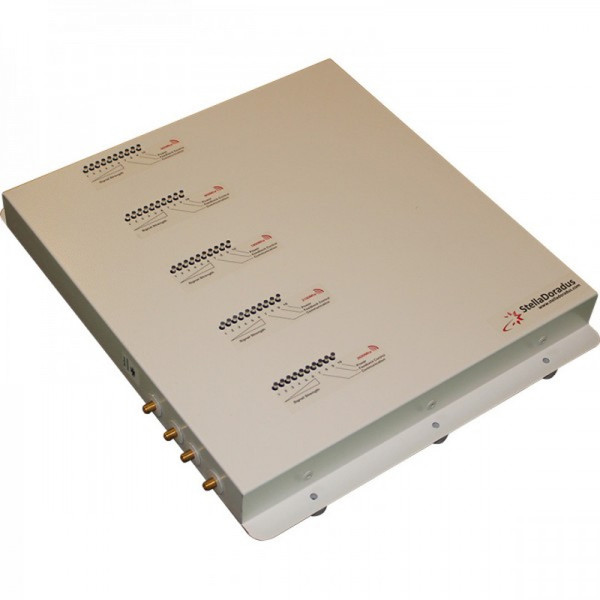

Signal Repeater Kit for Voice/SMS, 4G LTE & 3G Data - RP-LGDWH-4P (800Mhz / 900Mhz / 1800Mhz / 2100Mhz / 2600Mhz) SD-RP1002-LGDWH-4P

The SD-RP-1002-LGDWH-4 5 band repeater boost all networks (GSM, 3G and 4G), covering all signal frequencies here in Ireland. It can work on 800, 900, 1800, 2100, 2600 MegaHertz frequency bands. This model is ideal in boosting signal in large areas like offices and multi-storey buildings. It works on multi-devices and not limited to one user. Very useful for large offices where people will be on different network operators (Vodafone, Meteor/Eir, 3), and will be using voice, email and 3G/4G internet all at the same time.

All Ireland frequencies are covered so you don’t need to test which frequencies you are receiving in your warehouse.

Features

• Boosts all 5 Mobile Frequency Bands (800 / 900 / 1800 / 2100 / 2600)
• Provides GSM + 3G + 4G (800MHz/1800MHz/2600MHz) signal for large buildings.
• Coverage: 4000sqm (up to 15 rooms)
• Cover all mobile frequencies. 4G future proofed.
• Compatible with all European mobile operators.
• Unlimited number of calls / data sessions at the same time.
• CE certified & ComReg Approved
• Signal power and diagnostics indicator.
• Manufactured in Ireland
• Complete operator network protection.
• 3 year warranty

The SD-RP-1002-LGDWH-4 is excellent in providing strong GSM, 3G and 4G/LTE signal coverage in your office, school or any multi-storey buildings like hotels, condos or hospitals. As long as there is signal outside your house or building, this device can amplify it and re-transmit the signal throughout your warehouse or any targetted area. It can cover around 10 rooms, and could cover more area if you install additional kits.

For the repeater to work you must have at least 1 signal bar outside your house or building.

Okay now, here's how the device works:

1. Weak signal outside your home/office is received by the outdoor antenna, and takes in the signal through a cable connected to the booster device.

2. The device will amplify the received signal and do some filtration and interference control magic. Interference control is some sort of technology that prevents signal noise in a network, so as not to disturb neighbouring network on the same spectrum.

3. The boosted signal will be re-transmitted to your target area using the supplied indoor panel antenna. Depending on your needs and applications, the indoor transmitter antenna can also be an omni-directional antenna that can be mounted to a ceiling.
