Brand Information

Series 65 incorporates well-proven sensing technologies, including an Integrated Circuit based on that used in XP95 analogue addressable detectors. The Series 65 range has a wide operating voltage of 9–33V and consists of ionisation, integrating ionisation and optical smoke detectors, four grades of heat detector and a range of bases.

Brand Features

Wide-operating voltage of 9–33 V DC Wide-operating and storage temperature of -20°C to +60°C Can be used on security systems Electrically and mechanically compatible with Series 60 Proven detection performance

Operation

Series 65 Relay Bases are primarily intended for use with control units using 4-wire detector supply and alarm initiating circuits. Where local codes allow, they may also be used in 2 and 4-wire circuits to provide volt-free control signals to an auxiliary system such as an automatic door closer. They are not suitable for use in systems where it is specified or required that operation of the auxiliary system shall be fail-safe and must not be used with any other type of detector .

Product Information

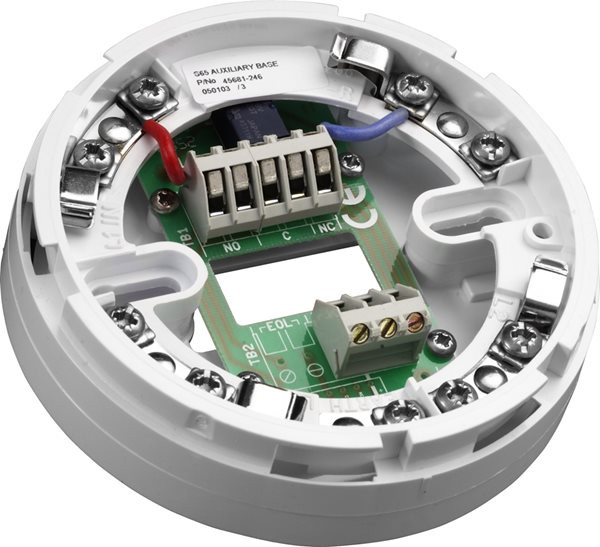

The Series 65 Auxiliary Relay Base provides two sets of volt-free changeover contacts to facilitate the switching of a remote LED or other auxiliary device.

Key Features

Detector locking mechanism One way fit Easy to wire Contains an earth connector
