Product Overview
Seagate Part #/MPN: ST1000VX000
DiscTech Item #: SGT-ST1000VX000-FR-OE
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 156
Average Seek Time: 8.5 / 9.5
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

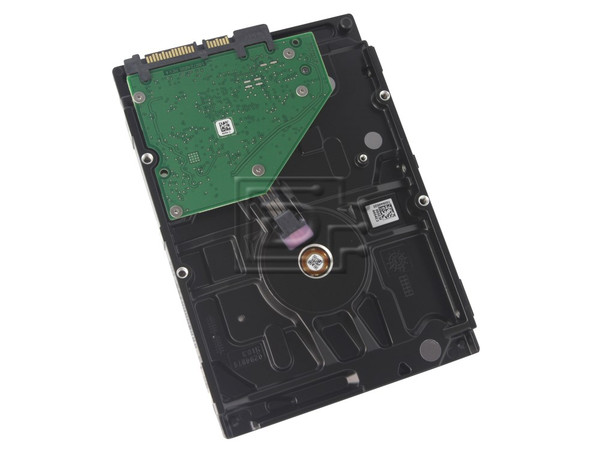

Seagate SV35.6 ST1000VX000 1000GB / 1TB 7.2K 6.0Gb/s SATA Hard Drive - Factory Refurbished
Alt MPN: 1ES162-500
Robust Surveillance Storage
The seventh-generation Seagate® Surveillance HDD addresses the increasing need for high-resolution cameras and camera counts, and ensures cost-effective performance and durability in always-on surveillance systems.
Precision-tuned for high write surveillance workloads
Reliably performs in multi-drive systems with RAID support
Rotational vibration sensors for reliable performance
Customize power settings to best support motion-activated cameras with Idle 3 support
Surveillance HDD Delivers Reliability
Surveillance HDDs are engineered for demanding surveillance systems. Should your data be lost, unintentionally deleted, or corrupted by viruses the data can be recovered with the new Seagate Rescue Services feature.
Compatibility: This SATA hard drive will work in any system that supports 3.5" SATA disks.
| Specifications | 1000 GB |
|---|---|
| Model Number | ST1000VX000 |
| Interface | SATA III / 6.0GB/s |
| Cache | 64 MBytes |
| Capacity | 1000 GB |
| Guaranteed Sectors | 1,953,525,168 |
| PHYSICAL | |
| Height (max) | 20.17 mm (.7825 inches) |
| Width (max) | 101.6 mm (4.010 inches) |
| Length (max) | 146.99 mm (5.787 inches) |
| Weight (typical) | 400 grams ( .88 pounds) |
| PERFORMANCE | |
| Spindle Speed | 7,200 rpm |
| Average latency | 4.16 msec |
| Random read seek time | <8.5 msec |
| Random write seek time | <9.5 msec |
| RELIABILITY | |
| Annual Failure Rate | 0.34% |
| POWER | |
| Maximum start current, DC | 2.00 amps |
