Roger Technology SMARTY 7 36v BRUSHLESS Electric Gate Kit - Double
The Brushless SMARTY industrial motors are the largest electromechanical actuators in the Roger Technology range. Boasting features such as low voltage & super intensive use, an onboard native encoder, irreversible swing and are suitable for gates up to 7m length! The SMARTY motors are the ideal replacement for hydraulic motors on large gates, bringing the next generation of on-board safety features.

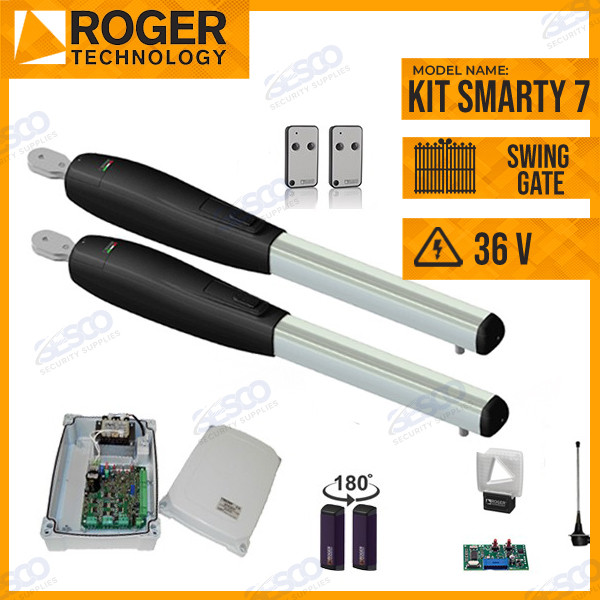

Kit Contents:
2 x Roger Technology Smarty 7 Brushless 36V Super Intensive Motor.
2 x Roger E80 Radio Remotes 2 Button.
FES 180º Photocell Beams.
LED Working Light.
Aerial
RX93 Radio Plug In Module
B70/2DCHP 36V Brushless Controller
Features include:
- Super Intensive Use: Capable of running non-stop.
- Twin Heavy Duty Bearings: For swing gates up to 7m per leaf.
- Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
- Practical: Automatic programming, via the learning function of the control unit.
- Quick: Ease of installation, and startup due to its simple functions.
- Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate the lock.
- Convenient: Battery back up available.
Technical Specifications.
| Power | 36V |
| Power rating | 200W |
| Max Thrust | 600 - 5000N |
| Frequency of use | Intensive use |
| Operating temperature | -20 C° to 55 C° |
| Protection level | IP 44 |
| Stroke | max. 520mm |
| Manoeuvre speed | 1,66 - 1 cm/s |
| Opening time at 90° | 35-50 s |
| Maximum dimension product in mm | L1312 x W166 x 137H |
| Operating cycles per day (opening/closing - 24 hours no stop): | 1000 cycles |
| Limit switch: | Mechanical stopper in opening and closing |
| Always included in the individual product package or kit: | Kit 3 hinge plates short, to weld.(KT238), 2 mechanical stop (MC782). |
| Reductor Type: | Irreversible |
