Product Overview

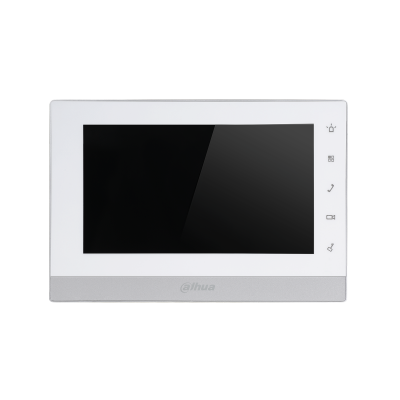

VTH1550CH
IP Indoor Monitor
> 7" TFT Capacitive touch screen
> IPC surveillance
> Alarm integration
> Micro SD card optional, max 32GB
> Record & Snapshot(SD card needed)
> IPC surveillance
> Alarm integration
> Micro SD card optional, max 32GB
> Record & Snapshot(SD card needed)
|
Technical Specification |
|
|
Model |
VTH1550CH |
|
System |
|
|
Main Processor |
Embedded Micro Processor |
|
Operation System |
Embedded LINUX OS |
|
Video |
|
|
Video Compression |
H.264 |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Audio Input |
All-direction Microphone |
|
Audio Output |
Built-in Loudspeaker |
|
Bidirectional Talk |
Support Dual-way Bidirectional talk |
|
Display |
|
|
LCD Screen |
7“ 800x480, Capacitive |
|
Operation Mode |
|
|
Input |
Touch buttons |
|
Interface |
|
|
Alarm In |
6 |
|
Alarm Out |
1 |
|
RS485 |
1 |
|
Network |
|
|
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP |
|
General |
|
|
Memory Slot |
Micro SD, Max 32GB |
|
Installation |
Surface |
|
Power |
DC 12V/ supply directly by VTNS1060A |
|
Power Consumption |
Standby ≤1.5W, Work ≤7W |
|
Working Temperature |
﹣10°C~+55°C |
|
Relative Humidity |
10%~90%RH |
|
Dimensions |
200.5mm×136.5mm×22.0mm |
|
Weight |
0.8Kg |
