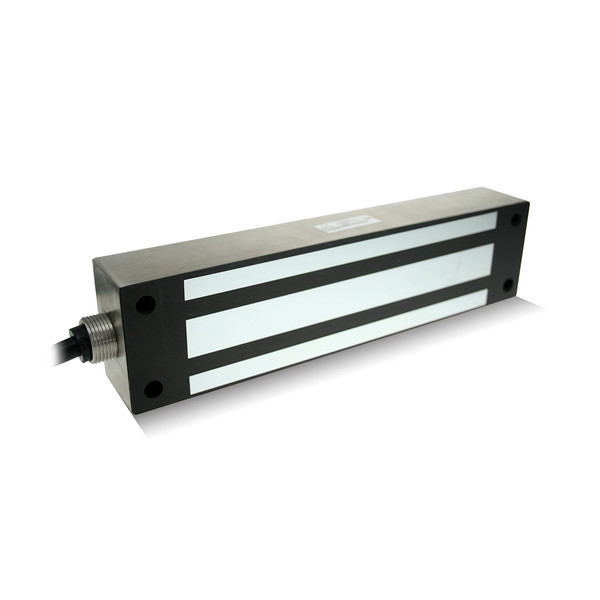

HIGH SECURITY STAINLESS STEEL MAGNET
- Operating voltage 12 or 24Vdc
- Stainless Steel
- Holding force up to 1800lbs (818kg)
- Face mount on sliding doors
- Weather resistant: IP67
- Vandal resistant
- Suitable for prison or high-security gate
Product Overview
GL-1800F-10TB
Description
- Voltage tolerance: ±15%.
- Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Humidity: 0~95% non-condensing.
- Special Zinc finishes for the magnet.
- Weight: 8.0kg (approx).
