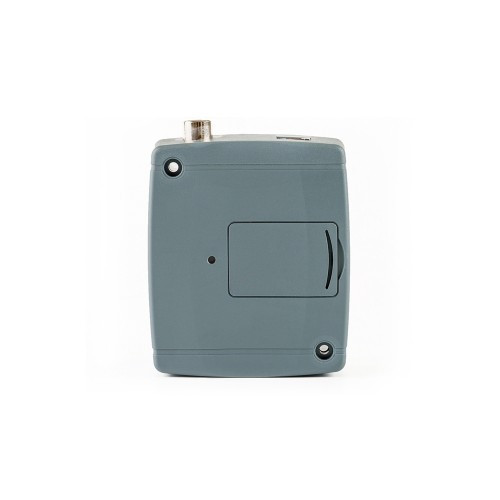

Gate Control PRO 1000

Product ID
5999881193268

Package size
230x160x42 mm

Package weight
0.38 kg

GSM-based remote control for electric gates and barriers

Main features:

• Control of electric gates and barriers via mobile phone, smartphone application or via GSM call
• Option for controlling two different gates or barriers with the same device
• 1000-user variant
• Notification sending if the gate or barrier fails to open or close
• Showing the open/closed status of the gates or barriers in the smartphone application
• Status reporting of 4 contact inputs via e-mail, SMS or call
• Transmits doorbell activity to mobile phone
• ONVIF camera support, makes camera pictures available in the smartphone application
• Configurable user permissions and entry periods
• Configurable automatic timed controls
• Event log and report sending in e-mail

Application area:

Electric gates, garage doors, barriers, parking lots, parking garages, multi-storey car parks, residential parks, other controls

Technical specification

• Transmission channel
  2G / GSM
• Frequency band
  850/900/1800/1900MHz @GSM/GPRS
• Operating temperature
  -20 ºC - +70 ºC
• Supply voltage
  12-30 VAC/DC
• Current consumption (maximum)
  500 mA @ 12 VDC
• Current consumption (nominal)
  120 mA @ 12 VDC
• Casing
  Plastic
• Terminal connector design
  Connectable
• Dimensions
  84x72x32 mm
• Weight
  200 g

Inputs

• Contact inputs
  4
• Configurable inputs (NO/NC)
  Yes
• Adjustable input sensitivity
  Yes

Outputs

• Relay outputs
  2
• Output control through free GSM call
  Yes

Notifications

• GSM voice call
  Yes
• SMS sending
  Yes
• E-mail sending
  Yes
• Push Notification
  Yes

Programming

• Programming method
  USB / IP
• Programming software
  Yes

Users

• User phone numbers for forwarding incoming SMS messages
  1
• User phone numbers for reporting
  4
• User phone numbers for output control
  1000 / Unlimited

Other functions

• Built-in internal clock
  Yes
• Security password
  Yes
• Event logs / number of stored events
  Yes / 1200
• Caller identification
  Yes
• Mobile application
  Yes
• Individual email sending with predefinable message
  Yes
• Individual SMS sending to user phone numbers with predefinable message
  Yes
• Periodic test report
  Yes
• Alarm restriction
  Yes
• IP camera support
  Yes
