Product Overview

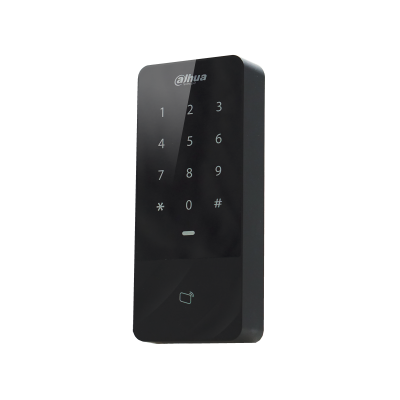

ASI1201E/ASI1201E-D
Water-proof RFID Standalone
> Support multiple cards (default IC card) (“-D” means ID EM card)
> Support card, password and combination
> TCP/IP to PC
> Wiegand or RS-485 interface to reader
> Door time out alarm, intrusion alarm, duress alarm and tamper alarm
> Anti-passback, multi-card open
> Water-proof design
> Support 128 efficient time and holiday schedules
> Watch dog function ensure device free from halting
> IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
-
Technical Specification
Mode
ASI1201E
ASI1201E-D
System
Main Processor
32 Bit
Input/Output Ports
Input
Door sensor x 1, Exit button x 1
Output
Relay x 1 (Door lock,)
Reader
Reader x 1
Card Read
Read Format
13.56MHz
125KHz
Read Range
1cm–2cm (max.)
Response Time
<0.1s
Capacity
Cardholders
30,000
Events
60,000
Function
User Management
General, VIP, Guest, Patrol, Black list, Duress
Alarm Function
Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Period Setting
Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods
Interface
To PC
RJ45(10/100M)
To Reader
Wiegand26/34, RS485
Genreal
Ingress Protection
IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
RTC
Yes
Beep Tone
Buzzer
Keyboard
Sensitive touch keypad with blue backlight
Power Supply
DC 9-15V/100mA
Operating Temperature
-10°C to +55°C
Working Humidity
10%RH–90%RH (no-condensation)
Dimension(W×D×H)
62.0mm×142.0mm×23.0mm
Weight
0.5kg
Working Environment
Outdoor
Certificates
CE
Yes
FCC
Yes
