Product Overview

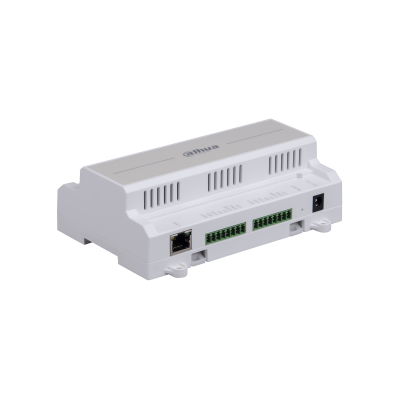

ASC1202B-S
Two Door one-way Access Controller
> Support multiple cards
> Support card, password, fingerprint and combination
> TCP/IP interface to PC
> Wiegand or RS-485 interface to readers(2 door)
> Door time out alarm, intrusion alarm, duress alarm and tamper alarm
> Anti-pass back, multi-door interlock, multi-card open
> Support 128 efficient time and holiday schedules
> Watch dog function ensure device free from halting
> Surface mounted installation
-
System
Main Processor
32 Bit
Memory
16M
Input/Output Ports
Input
Inputs x 6 ( door sensor x 2, exit button x 2, alarm x 2)
Output
Relay x 4(door lock x 2, alarm x 2 )
Reader
Reader x 2
Capacity
Card holders/Events
100,000/150,000
Function
Access control
Anti-pass back, Multi-interlock, Multi-card unlock
User Management
General, VIP, Guest, Patrol, Black list, Duress
Alarm Function
Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Period
Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
Interface
To PC
RJ45(10/100M)
To Reader
Wiegand26/34，RS485
Genreal
RTC
Yes
Power Supply
9-15DC/500mA
Operating Temperature
-30°C to +60°C
Working Humidity
≤95%
Dimension(W×D×H)
156mm×51mm×98mm
Weight
0.45kg
Working Environment
Indoor
Certificates
CE
Yes
FCC
Yes
