Product Overview

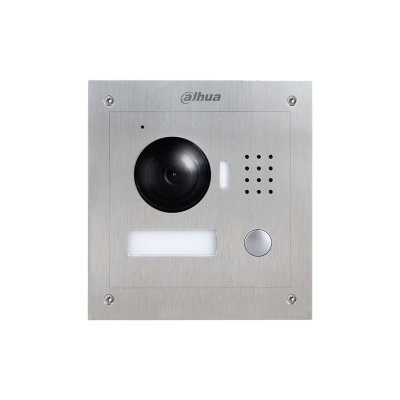

VTO2000A
IP Villa Outdoor Station
> Stainless steel panel, IP54,IK07
> Night vision &Voice indication
> Video & Audio messaging
> Remote intercom with mobile APP
> Surface mounted & Flush mounted
|
Technical Specification |
|
|
Model |
VTO2000A |
|
System |
|
|
Main Processor |
Embedded Micro Processor |
|
Operation System |
Embedded LINUX OS |
|
Video |
|
|
Video Compression |
H.264 |
|
Image Sensor |
1/3” 1.3MP CMOS |
|
Lens |
2.8mm |
|
Angle of View |
D:120° H:90° |
|
Day/Night |
Color Image |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Audio Input |
Omnidirectional Mic |
|
Audio Output |
Built-in Speaker |
|
Bidirectional Talk |
Support Dual-way Bidirectional talk |
|
Operation Mode |
|
|
Keypad |
Single Mechanical Button |
|
Interface |
|
|
Door Control |
2(1 relay out for main lock, 1 extended by access control module) |
|
Alarm In |
2(1ch unlock button, 1ch feedback) |
|
RS485 |
1 |
|
Network |
|
|
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP |
|
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP |
|
General |
|
|
Ingress Protection |
IP54, IK07 |
|
Tamper Switch |
1 |
|
Installation |
Surface & Flush |
|
Material |
Stainless Steel |
|
Power |
DC 12V |
|
Power Consumption |
Standby ≤1W, Work ≤10W |
|
Working Temperature |
﹣40°C~+60°C |
|
Relative Humidity |
10%~90%RH |
|
Dimensions |
129.9mm×32.2mm×140mm |
|
Weight |
0.8Kg |
