Product Overview

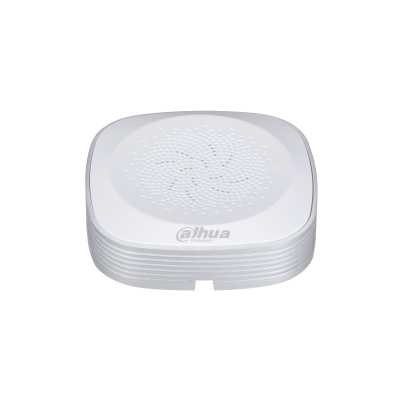

HAP200
Hi-fidelity Pickup
> Plastic material
> Easy to install
> ALC processing circuit
> Basic noise reduction
> Support cascading
> Easy to install
> ALC processing circuit
> Basic noise reduction
> Support cascading
| Model | DH-HAP200 |
| General | |
| Scope | 10~100 m2 |
| Sensitivity | -30dB |
| Frequency response | 20Hz～20kHz |
| Directional characteristic | Omni-directional |
| SNR | 80dB(1m 40dB sound source SPL) 50dB(10m 45dB sound source SPL) 1kHz at 1Pa |
| Dynamic range | 104dB(1KHz at Max dB SPL) |
| Max. sustainable sound pressure | 120dB SPL(1KHz, THD 1%) |
| Output impedance | 600Ω(non-equilibrium) |
| Output signal amplitude | 2.5Vpp/-25dB |
| Microphone | Electret condenser microphone |
| Working voltage | DC 12V(9~18V) |
| Working current | 50mA |
| Working temperature | -25ºC~+70ºC(-13℉~+158℉) |
| Material | PC+ABS |
| Color | White+silver |
| Dimension | 79.6mmx79.6mmx21.5mm (3.13”x3.13” x0.85”) |
| Weight | 0.06kg(0.13lb) |
| Certification | CE/FCC |
| DH-HAP200_Datasheet |
