Product Overview

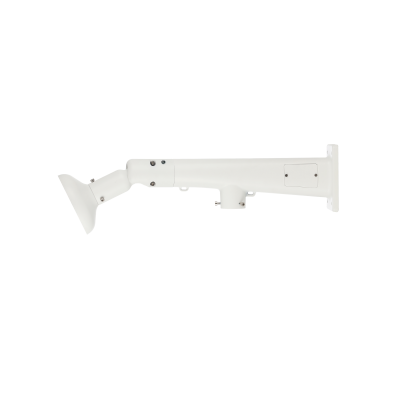

PFB410W
Fisheye-PTZ Integrated Bracket
>Neat & Integrated design, wall mount and hidden line design.
>Material: Aluminum.
>Support linkage scheme between fisheye and speed dome, integrated installation.
>Multi-dimensional adjustment, able to meet Omni-directional observation requirements from different angles.
>Safety rope hook attached, secure and reliable.
>Maintenance cover board attached, convenient operation.
>Material: Aluminum.
>Support linkage scheme between fisheye and speed dome, integrated installation.
>Multi-dimensional adjustment, able to meet Omni-directional observation requirements from different angles.
>Safety rope hook attached, secure and reliable.
>Maintenance cover board attached, convenient operation.
| Model | DH-PFB410W |
| General | |
| Material | Aluminum |
| Dimension | Rotation angle 0° : 651.6mmx164.8mmx154.9mm (25.7”x6.5”x6.1”) Rotation angle 88° : 555mmx236.9mmx154.9mm (21.8”x9.3”x6.1”) |
| Adjustment angle (Vertical) | 0°~88° |
| Adjustment angle (Horizontal) | 0°~360° |
| Load Bearing | Fisheye: 1kg (2.2lb) PTZ: 7kg (15.43lb) |
| Weight | 2.8kg (6.17lb) |
| Color | White |
| Operating Temperature | -40ºC ~60ºC(-40℉~+140℉) |
| Humidity | 0~90% RH |
| DH-PFB410W_Datasheet_20170217 |
