IPC-HDW3249H-AS-PV

2MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera

· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 × 1080) @30 fps
· H.265 codec, high compression rate, low bit rate
· Built-in warm illuminator, and the max. illumination distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and
accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, and voltage detection.
· Supports sound and light alarm linkage. When an alarm is triggered, the
camera links sound alarm and light flashing.
· Supports one-tap disarming. You can disarming the events of alarm
output, sending email, audio, and light in the configured period.
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
card, built-in Mic and spearker
· 12V DC/PoE power supply
· IP67 protection
· SMD Plus
· Red and blue flashlight alarm

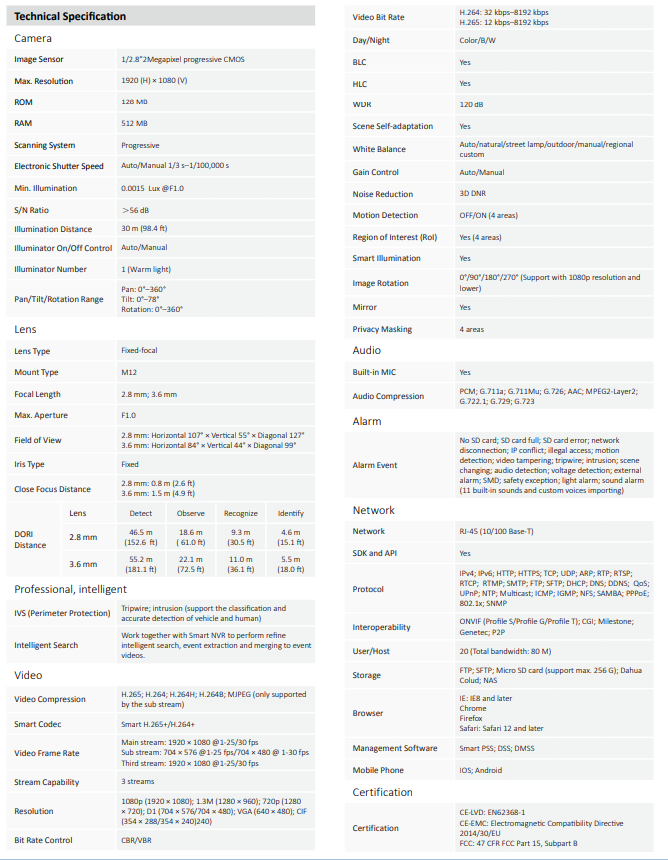

Technical Specification Camera Image Sensor 1/2.8”2Megapixel progressive CMOS Max. Resolution 1920 (H) × 1080 (V) ROM 128 MB RAM 512 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.0015 Lux @F1.0 S/N Ratio ＞56 dB Illumination Distance 30 m (98.4 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 1 (Warm light) Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.0 Field of View 2.8 mm: Horizontal 107° × Vertical 55° × Diagonal 127° 3.6 mm: Horizontal 84° × Vertical 44° × Diagonal 99° Iris Type Fixed Close Focus Distance 2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.5 m (4.9 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 46.5 m (152.6 ft) 18.6 m ( 61.0 ft) 9.3 m (30.5 ft) 4.6 m (15.1 ft) 3.6 mm 55.2 m (181.1 ft) 22.1 m (72.5 ft) 11.0 m (36.1 ft) 5.5 m (18.0 ft) Professional, intelligent IVS (Perimeter Protection) Tripwire; intrusion (support the classification and accurate detection of vehicle and human) Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265+/H.264+ Video Frame Rate Main stream: 1920 × 1080 @1-25/30 fps Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-30 fps Third stream: 1920 × 1080 @1-25/30 fps Stream Capability 3 streams Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps Day/Night Color/B/W BLC Yes HLC Yes WDR 120 dB Scene Self-adaptation Yes White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detection OFF/ON (4 areas) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support with 1080p resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression PCM; G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing) Network Network RJ-45 (10/100 Base-T) SDK and API Yes Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P User/Host 20 (Total bandwidth: 80 M) Storage FTP; SFTP; Micro SD card (support max. 256 G); Dahua Colud; NAS Browser IE: IE8 and later Chrome Firefox Safari: Safari 12 and later Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certification CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B | DH-IPC-HDW3249H-AS-PV Port Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 1 channel in: 5mA 3V–5V DC Alarm Output 1 channel out: 300mA 12V DC Power Power Supply 12V DC/PoE (802.3af) Power Consumption Basic power consumption: 1.9W (12V DC); 2.55W (PoE) Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 6.1W (12V DC); 7.35W (PoE) Environment Operating Conditions –40°C to +60°C (–40°F to +140°F)/Less than 95% RH Strorage Conditions –40°C to +60°C (–40°F to +140°F) Protection Grade IP67 Structure Casing Metal Dimensions Φ122.0 mm × 110.9 mm (Φ4.8" × 4.4") Net Weight 754 g (1.7 lb) Gross Weight 915 g (2.0 lb) Ordering Information Type Model Description 2MP Camera DH-IPC-HDW3249HP-AS-PV 2MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera, PAL DH-IPC-HDW3249HN-AS-PV 2MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera, NTSC IPC-HDW3249HP-AS-PV 2MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera, PAL IPC-HDW3249HN-AS-PV 2MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera, NTSC Accessories (Optional) PFA137 Junction Box PFB205W Wall Mount PFB220C Ceiling Mount PFA152-E Pole Mount PFM321D 12V DC 1A Power Adapter LR1002-1ET/1EC Single-port Long Reach Ethernet over Coax Extender PFM900-E Integrated Mount Tester PFM114 TLC SD Card
