Product Overview

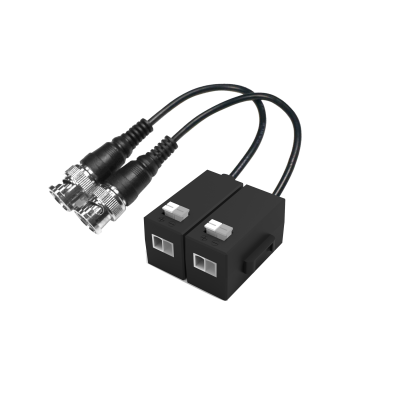

PFM800-E

1 Channel Passive HDCVI Balun

>Real-time transmission over UTP CAT5E/6 cable.
>Passive, no need for power supply.
>With female BNC connector, and pluggable screw terminal connections.



Model PFM800-E
Properties
Transmission Signal 1 channel
Transmission Distance HDCVI
720P: max.400m(1312.34ft)
1080P: max.250m(820.21ft)
Category Type UTP CAT 5E/6
Video Transmission Properties And Port
Coaxial Video Connector BNC-M
Twisted-pair Video Connector Push-terminal
Compatible Format HDCVI/AHD/TVI/CVBS
Resolution 720P/1080P
Anti-interference >60db
Protection
ESD 1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per: IEC1000-4-5
UTP Cable Connector 2KV(different-code), 4KV(common-code), Per: IEC1000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Dimension(L*W*H) 180mm*19mm*16mm(7.09”x0.75”x0.63”)
Shell ABS
Color Black
N.W. 42g/pair (0.09lb)
Stability
MTBF >10000h
Environmental
Operating Temperature -10℃~+55℃(14℉~131℉)
Storage Temperature -20℃~+70℃(-4℉~158℉)
Humidity 0~95%(non-condensing)



PFM800-E_datasheet_20180507
